Rockler Pro Shelf Drilling Jig - $100 (Hwy. 42, Louisville)
QR Code Link to This Post
Just lay the jig on your stock, tighten the two horizontal tracking knobs and start drilling error-free rows.
Features:
Guarantees each row is perfectly in line
Removes the chance of misaligned shelf pin holes, which means no wobbly shelves
Spaces each hole exactly 37mm from the edge of your stock
Jig is easy to set up and easy to adjust for multiple rows
Rows are spaced exactly 1-1/4" (32mm) apart
Pin holes are set back exactly 1-7/16" (37mm) from each edge
32mm spacing and 37mm setback are fully compatible with the Euro hinge system
24" long twin template tracks are joined by rigid rails that lock in place for error-free drilling
Drill two rows with one jig to save time and ensure accuracy
Locking 3-star tracking knobs allow for adjustments and ensure the jig stays firmly in place
Reversible guide rails have a smooth aluminum surface on one side and a rubber fence on the other for better gripping power
Includes two 5mm and two 1/4" indexing pins that eliminate the need for clamps and allow you to extend long rows of holes indefinitely
Included indexing pins store conveniently in the ends of each guide rail when not in use
Drilling template is made of thick acrylic for durability
Designed for un-assembled cabinet components from 8-1/4"W to 25-1/4"W

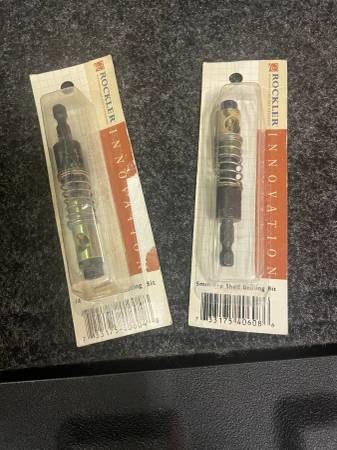

Includes both 1/4" and 5 mm center indexing drill bits!
